Understanding the Difference Between Air Handler and Condenser

July 15, 2025



At Airview AC, we know that HVAC lingo can get a bit overwhelming—especially when your technician starts tossing around terms like air handler, condenser, compressor, and evaporator coil like it’s common vocabulary. But don’t worry—we’re here to help break it all down. Today, let’s explore the difference between an air handler and a condenser, why they’re both critical to your home comfort, and what you need to know if you're facing repairs or replacements.

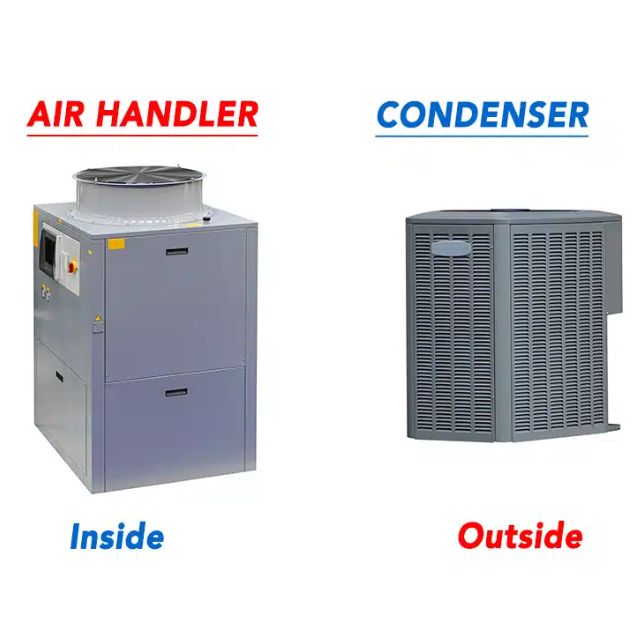

What Is an Air Handler?

Let’s start with the air handler. If you’ve ever poked around your attic, garage, or utility closet and spotted a tall metal cabinet, chances are you were looking at the air handler. This indoor unit is the heart of your HVAC system when it comes to moving air around your home.

Here’s what the air handler does: it pulls in air from inside your home, runs it through a filter to catch dust and allergens, passes it over evaporator coils (which cool or heat the air), and then sends that conditioned air through the ductwork into every room.

It’s made up of three main components:

• Air filter – catches airborne contaminants.


• Evaporator coil – where refrigerant absorbs heat, starting the cooling process.


• Blower fan – pushes the cooled or heated air through the ducts.


Think of the air handler as your home's air traffic controller—it decides where air goes and how fast it gets there.

What Is a Condenser Unit?

Now let’s take things outside. That big metal box sitting next to your house? That’s the condenser. Also known as the outdoor unit or compressor unit, this is where the heat from inside your home is expelled.

During cooling mode, warm indoor air is absorbed by the refrigerant, which carries the heat to the condenser. The condenser then releases that heat to the outside world. It includes:

• Compressor – pressurizes the refrigerant, increasing its temperature and efficiency.


• Condenser coils – release the collected heat.


• Fan – pulls in outside air to help dissipate that heat.


So while your air handler is doing all the moving and circulating, the condenser is getting rid of the heat you don’t want. In the case of heat pumps, this process reverses in the winter to bring warmth inside instead.

How Air Handlers and Condensers Work Together

Here’s the deal—they’re a dynamic duo. In a split HVAC system, which is the most common setup in homes around Van Alstyne and the rest of North Texas, your air handler and condenser are designed to operate as a matched pair.

The air handler manages airflow inside. The condenser manages heat transfer outside. One can’t do its job without the other, and they need to communicate effectively to deliver that perfect indoor temperature.

This is why we always tell customers: if you’re replacing one, you should strongly consider replacing the other—we’ll explain why in just a bit.

The Importance of Matched HVAC Systems

Modern HVAC systems are engineered with specific compatibility in mind. The air handler and condenser must be matched in terms of:

• Coil design


• Refrigerant type


• Performance capacity


• Efficiency rating (SEER)


Let’s say you upgrade your condenser to a shiny new 18-SEER model but keep your 10-year-old air handler. Unfortunately, you won’t get the efficiency or performance the new condenser was designed to deliver. In fact, you might end up voiding your warranty and spending more on energy bills and repairs.

It’s like pairing a high-end engine with worn-out tires—you’re not going to get the ride you were promised.

The Role of Ductwork in HVAC Efficiency

We can’t talk about air handlers without giving a shout-out to your ductwork—the unsung hero of home comfort. Your ducts are the highways that carry air between the air handler, the condenser, and each room.

If your ducts are leaky, crushed, or poorly sealed, even the best HVAC system won’t perform the way it should. In fact, leaky ducts can waste up to 30% of your conditioned air, which is like tossing money out the window.

That’s why part of our job at Airview AC isn’t just looking at the flashy equipment—it’s also making sure the infrastructure (aka your ductwork) is in solid shape.

Benefits of Upgrading to High-Efficiency HVAC Systems

If you’re thinking about replacing your air handler or condenser—or both—there’s good reason to go with a high-efficiency system. Here’s why:

• Lower Utility Bills – They use less energy to do the same job, saving you money every month.


• Longer Operating Life – High-efficiency systems run more smoothly and with less wear and tear.


• Fewer Repairs – Better technology means fewer breakdowns.


• Better Comfort – More consistent temperatures and better humidity control.


• Environmental Impact – Reduced carbon footprint thanks to less energy consumption.


Not only will you feel more comfortable, but your wallet (and the planet) will thank you.

Why You Should Replace Both Units Together

We mentioned this earlier, but it’s worth emphasizing again: replacing both the air handler and condenser together is your best bet.

Here’s why:

• Matched systems ensure maximum energy efficiency.


• You get full manufacturer warranty coverage.


• Installation is more streamlined and less expensive long-term.


• You avoid potential compatibility issues and premature system failure.


• You’re investing in future-proof technology that meets new regulations.


Bottom line? If one component is failing and the other is nearing the end of its lifespan, do yourself a favor and replace them both at the same time.

Preventative Maintenance: A Key to System Longevity

Now that you know how important these components are, it’s just as critical to maintain them regularly. Our Van Alstyne weather can flip-flop faster than a Texas two-step, and your HVAC system works overtime to keep up.

Here’s what regular maintenance from Airview AC includes:

• ✔️ Cleaning coils, filters, and blower components


• ✔️ Checking refrigerant levels and pressures


• ✔️ Inspecting ductwork for leaks and airflow issues


• ✔️ Tightening electrical connections


• ✔️ Lubricating moving parts


• ✔️ Testing system controls and safety functions


• ✔️ Replacing worn parts before failure


• ✔️ Ensuring energy efficiency and optimal performance


A well-maintained system not only lasts longer but also saves you money on energy and avoids emergency repairs.

When to Call a Professional HVAC Technician

We always advise our customers—leave HVAC repairs and replacements to the pros. Your system is too important (and expensive) to gamble with guesswork or quick fixes.

If you're noticing signs like:

• Weak airflow


• Unusual noises


• Uneven temperatures


• Higher-than-normal energy bills


• Your system constantly cycling on and off


…it’s time to give us a call.

Our licensed technicians can inspect your system, help you understand what’s going wrong, and offer honest, expert solutions that fit your budget and comfort needs.

Maximize Comfort and Efficiency with Expert Help

At the end of the day, your air handler and condenser are partners in keeping your home cozy, cool, and efficient. Whether you’re replacing aging equipment, upgrading to a high-efficiency system, or simply trying to understand how it all works—we’ve got your back.

We take pride in helping Van Alstyne homeowners make smart HVAC decisions. From system installs to duct inspections to regular tune-ups, Airview AC is your go-to team.

Got questions about your air handler, condenser, or entire HVAC setup? Give Airview AC a call today—we’d love to help you stay comfortable year-round.
